Aerospace Copper Three Flute End Mill F20 Long Reach End Mills

Name: Aerospace Copper Three Flute End Mill F20 Long Reach End Mills
Brand: DTECH or OEM
Price: 1 USD

Wholesale Aerospace Copper Three Flute End Mill F20 Long Reach End Mills from china suppliers

Brand Name : DTECH or OEM

Model Number : F20-3EL

Certification : ISO9001/TS16949

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 100000PCS per 30days

Delivery Time : 2 weeks after the prepayment

Packaging Details : 1PCS packed small Plastic box +Carton

Flute Length : 12.00mm-75.00mm

Flute Diameter : 3.00mm-20.00mm

Overall Length : 60mm-150mm

Shank Diameter : 4mm-20mm

Helix Angle : 45°

Type : 3 flute End Milling Cutter

Flute Number : 3

Application Material : Copper, & Aluminum Alloy Material

Coating : TiAlN,CrAlN,TAC,Diamond ,Nano Blue

Surface Finish : Polished

Material : Solid Carbide

Usage : CNC machining

Application : Milling

Suitable For : High-speed machining

Contact Now

F20 Long Type 3 Flute End Milling Cutters For Copper Material Processing On aerospace

AL series tools are widely used in aerospace, automotive, electronic communication, home appliances and other wide range of parts processing

1: suitable for the series of copper, aluminum alloy and other materials processing

2: Suitable for oil mist cooling, water cooling, oil cooling, and other cooling environment cutting use

Aerospace Copper Three Flute End Mill F20 Long Reach End Mills

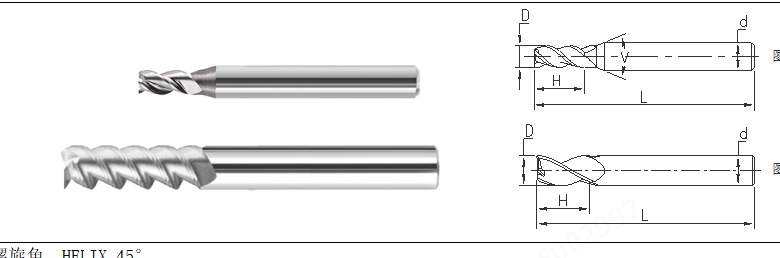

型号　Order NO	规格　　Dimensions (mm)
	规格　　Dimensions (mm)
	D	H	d	L
F20-3EL030S	3.0	12.0	4	60
F20-3EL040S	4.0	16.0	4	60
F20-3EL040-020S	4.0	20.0	4	75
F20-3EL040-024S	4.0	24.0	4	100
F20-3EL030	3.0	12.0	6	60
F20-3EL040	4.0	16.0	6	60
F20-3EL040-020	4.0	20.0	6	75
F20-3EL040-024	4.0	24.0	6	100
F20-3EL050	5.0	20.0	6	60
F20-3EL060	6.0	25.0	6	75
F20-3EL060-030	6.0	30.0	6	100
F20-3EL080	8.0	32.0	8	75
F20-3EL080-040	8.0	40.0	8	100
F20-3EL100	10.0	45.0	10	100
F20-3EL120	12.0	45.0	12	100
F20-3EL160	16.0	65.0	16	150
F20-3EL200	20.0	75.0	20	150
